Aluminum Nitride (AlN) performance critically depends on purity, particularly the content of oxygen (O), carbon (C), and metal impurities (Fe, Na, etc.).
Oxygen impurities → Form Al₂O₃ or AlON phases, significantly reducing thermal conductivity (every 1% increase in oxygen decreases thermal conductivity by 10-20 W/(m·K)).
Metal impurities → Degrade carrier mobility in semiconductor devices, reducing performance.
Carbon impurities → Generate Al₄C₃ at high temperatures, causing material embrittlement.
Currently, commercial AlN powder typically has a purity of 99.5%-99.9% (oxygen content >0.5%), while high-end applications (e.g., semiconductor substrates) require oxygen content <0.1%, even <100ppm.
How to Achieve High-Purity Aluminum Nitride?

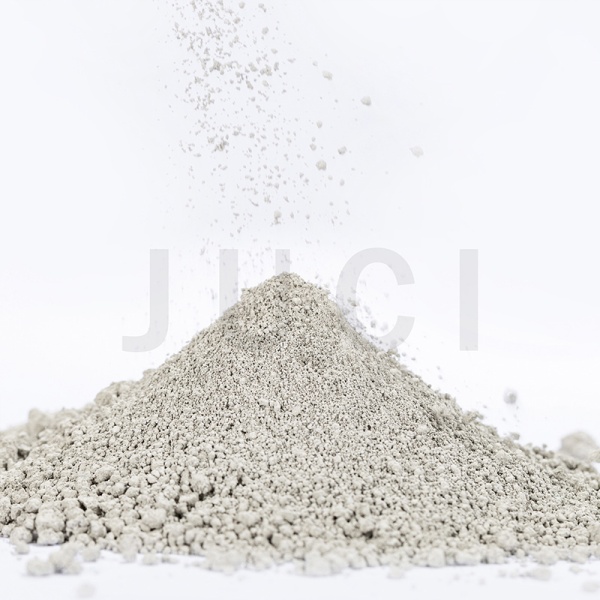

1. AlN Powder Purification Techniques
①Surface Modification (H₃PO₄ Treatment)
Phosphoric acid (H₃PO₄) forms a protective layer on AlN, inhibiting hydrolysis (reducing Al₂O₃ formation).
Advantage: Simple operation, suitable for industrial production.
Limitation: Cannot remove oxygen impurities inside the crystal lattice.
②High-Temperature Heat Treatment (2000-2200°C)
Heat treatment in a reducing atmosphere (H₂/N₂) to volatilize impurities.
Result: Oxygen content can be reduced to 220ppm, metal impurities <1ppm.
Challenge: Requires advanced equipment (tungsten crucible), AlN sublimation loss (~0.5-1%/h at 2200°C).
2. AlN Ceramic Purification Techniques
①NH₄F Sintering Additive
NH₄F decomposes into NH₃ & HF, reacting with Al₂O₃ to form volatile byproducts (e.g., AlF₃), reducing oxygen content.
Advantage: No new impurities introduced, enhances ceramic purity.
②High-Temperature Annealing
Heat treatment at 1800-1900°C to volatilize grain boundary phases, optimize microstructure, and improve thermal conductivity.
Future Trends: Higher Purity, Lower Cost
Advanced Purification Methods: Plasma-assisted purification, solvent extraction, CVD (Chemical Vapor Deposition) for ultra-pure AlN films.
Scalable Production: Optimized high-temperature processes to reduce AlN loss and costs.
Composite Materials: AlN-Graphene, AlN-SiC hybrid thermal materials for enhanced performance.
Conclusion: Aluminum Nitride – The Core Material for Future Technology
With the rapid growth of 5G, electric vehicles (EVs), deep-UV LEDs, and aerospace technologies, the demand for high-purity AlN will surge. Through advanced purification and sintering techniques, AlN will play a pivotal role in:
① Semiconductor devices (GaN-on-AlN, power electronics)
② High-power RF & 5G base stations
③EV power modules & thermal management
④Deep-UV LED substrates (UVC disinfection)
⑤Aerospace & extreme-environment applications
